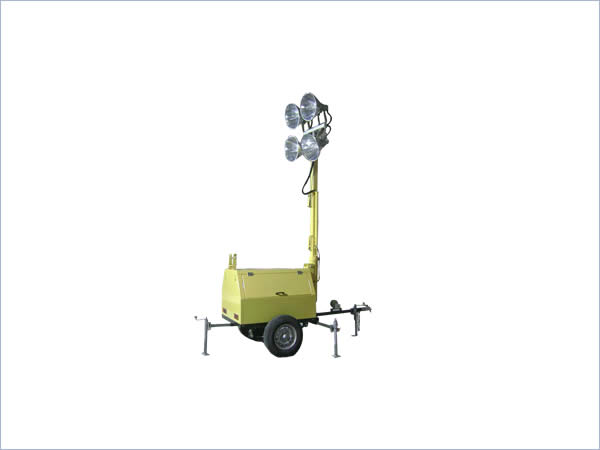

| Mobile Lighting Tower(Trailer type) Specification and Quotation |
| Description | LT-7000 |
| Engine | Vertical,air cooled,four stroke |
| Make/Model | 186FA |
| Cooling | AIR |
| Kw(Hp) at Continuous | 6.5(8.8)/3000 RPM,7(9.6)/3600RPM |
| Revolution(RPM) | 3000/3600 |
| Fuel Capacity(Liter) | 30 |
| Contineious Run Time | 16 hours |
| Number of Cylinders | 1 |
| Displacement L(cu, in) | 0.418 |
| Engine shutdown protection | low oil pressure |
| Exhaust gas emmission | EPA APPROVAL OPTIONAL |
| Alternator |
|
| Make/Model | BRUSHLESS FTS-6KVA |
| Output | 6KVA |
| Frequency | 50/60 |
| Insulation | F |
| Type of bearing/Brush | Single/Brushless Self excitation |
| Available Receptacles | 220V/45A |
| Lighting | METAL HALIDE, SINGLE ENDED, 1000W |
| Brand |
|
| Type of Lamp | METAL HALIDE, SINGLE ENDED |
| Lamp No. | 4 |
| Housing Materials | Galvanization Reflector Housing |
| Output | 440,000 Lumens/Total NEMA 6 5-7 Acres at an average 25 LUX |
| Mast Tower |
|
| Type | Multi-Sections Telescoping mast 6/7.5 M |
| Total Height | 6/7.5M, Can be rotaed 360 degree |
| Operate for Extends | Hand operated winch with safety brake |
| Traveling | Retracts and Stows Horizontally for travel tower is locked into position to prevent during travel |
| Outriggers |
|
| Trailer/Cabin | With the outriggers extended and all jack down |
| Wheel and Rim | 195/70-15 |
| Towing Type | Ring hitch |
| Cabin | With two doors access for easy maintenance with hanger for handling Detachable Roof |
| Electric-Shutdown protection |
|
| Electric | MCCB-MCB Emergency Stop IP 56 |
| Weight | 500KG |
| Packing Size | 1800*1150*1150MM |
| FOB Qingdao,China USD | US$3,200.00 |
| 20GP | 12SETS |
