Product

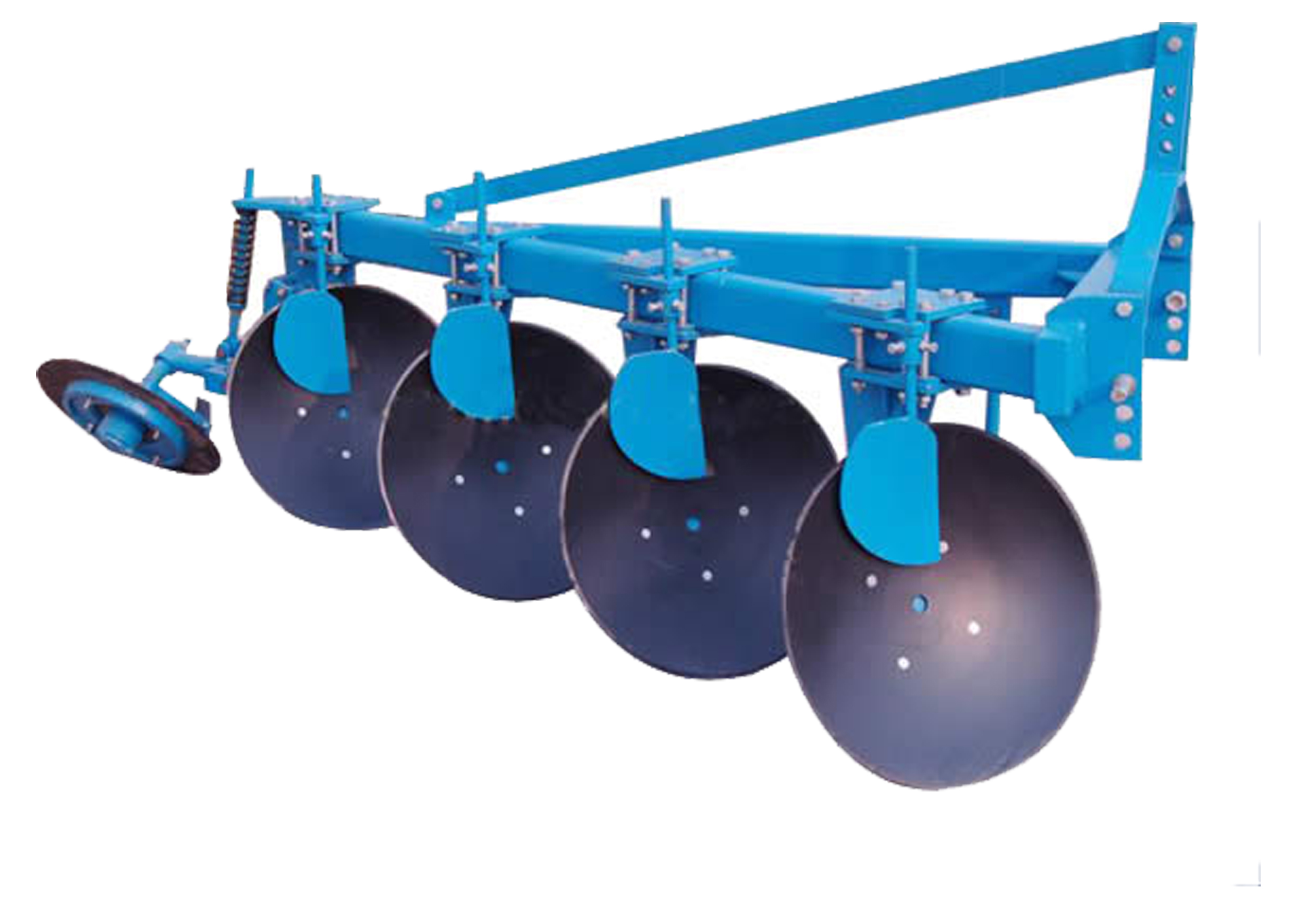

1LY


This series reversible disc plough is constructed to be level swing its suitable for plowing up the drycultivated land the discs are rotating forward during work,so the friction from soil is small and the discs are not easy to be wrapped and blocked up by grasses .with the long edge and the good wearing resistance of the disc ,its easy to plough into the soil and the land surface is level after plowing ,the productivity is high and the oil consumption is low the machine has noticeable advantages for working on the terraced field and small block field

机具型号

1LYQ-220

1LYQ-320

1LY(T)-325

1LY(T)-425

1LY(T)-525

1LY(T)-625

耕深(mm)

200

200

250

250

250

250

Working depth

耕幅(mm)

400

600

750

1000

1250

1500

Working width

耙片数量(片)

2

3

3

4

5

6

Qty of disc

耙片直径(mm)

500

500

650

650

650

650

Disc dinameter

整机重量(kg)

160

190

410

470

530

570

Overall weight

配套动力(kw)

11

18.3

36.7~40.4

47.7~58.8

58.8~73.5

88

Fitted power

挂接形式

1类三点悬挂

Ⅱ类三点悬挂

Linkage
