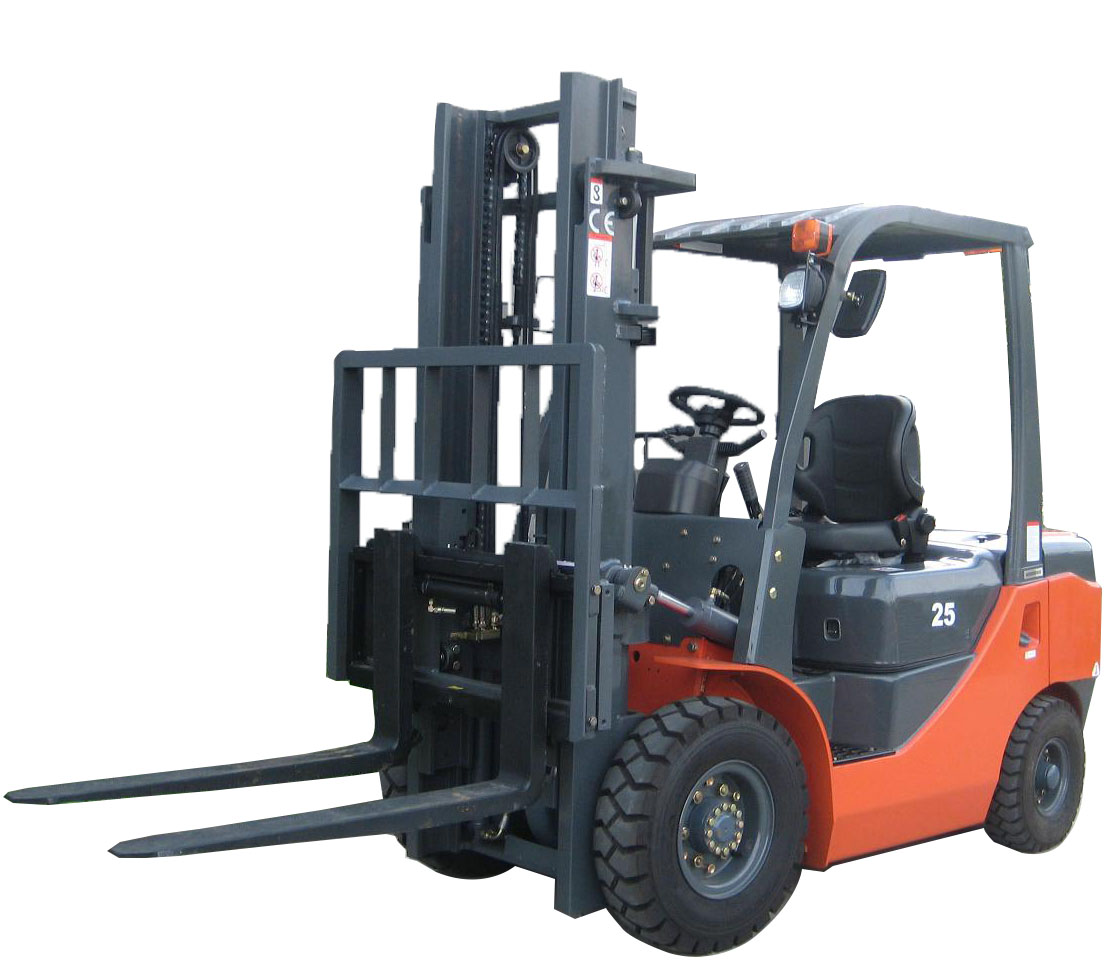

2-2.5T
General | 1 | Manufactures | MAP | |||
2 | Model | CPCD20
| CPCD25
| |||
3 | Power type | Diesel Engine | ||||
4 | Rated capacity | Kg | 2000 | 2500 | ||
5 | Load center | mm | 500 | |||
Dimensions | 6 | Lift height | mm | 3000 | ||
7 | Free lift height | mm | 120 | |||
8 | Fork size | mm | 1100 × 130 × 50 | |||
9 | Fork spread outside | mm | 290/1200 | |||
10 | Mast tilt angle | deg | 6 ° /12 ° | |||
11 | Fork overhang | mm | 465 | |||
12 | Size | length (from fork section) | mm | 2495 | 2565 | |
13 | Width | mm | 1150 | |||
14 | Mast lowerd height | mm | 2114 | |||
15 | Mast extended height | mm | 3585 | |||
16 | Overhead guard height | mm | 2090 | |||
17 | Min.Turning radius | mm | 2170 | 2240 | ||
18 | Min. right angle aisle width | mm | 2010 | 2080 | ||
Performance | 19 | speed (load) | Travel | km/h | 20 | |
20 | Lifting | mm/s | 450 | |||
21 | Max. grade ability | % | 19% | |||
22 | Self weight | kg | 3550 | 4000 | ||
Wheels&tyres | 23 | Tyres | Front | 7.00-12-12PR | ||
24 | Rear | 6.00-9-10PR | ||||
25 | Tread | Front | mm | 960 | ||
26 | Rear | mm | 980 | |||
27 | Wheelbase | mm | 1600 | |||
28 | Min. Ground clearance | mm | 110 | |||
