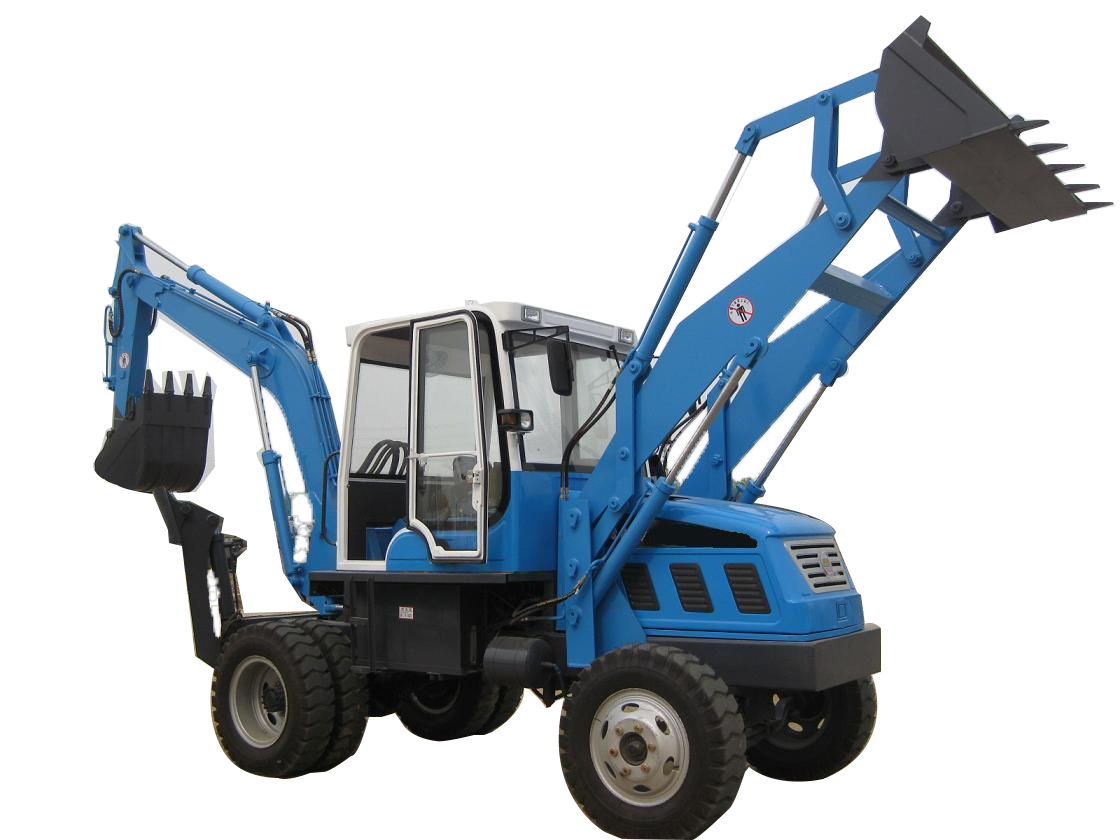

5000WZ

Engine Model

YTO4105 Turbo

Engine power

110HP(83KW)

Rated Speed

2400r/min

Working Range(mm)

Boom length

3100

Arm length

2100

Max digging radius

5800

Max digging depth

3400

Max dumping height

6080

Max discharge height

4390

Backhoe bucket capacity

0.2-0.3m3

Loading height

3300

Dump clearance

2500

Loading bucket capacity

05-06.m3

Rotation angle

180

Hydraulic System

Main pump type

Variable piston pump

Main pump max flow

63L/min

Pilot pump type

Gear pump

Pilot pump max flow

18L/min

The main overflow valve(boom/arm/bucket)

240kgf/cm

Dimensions(mm)

Cabinet width

1650

Cabinet height

2800

Ground clearance

240

Whell base

2880

Tread

1100

Whole length

4370
