FCY-15

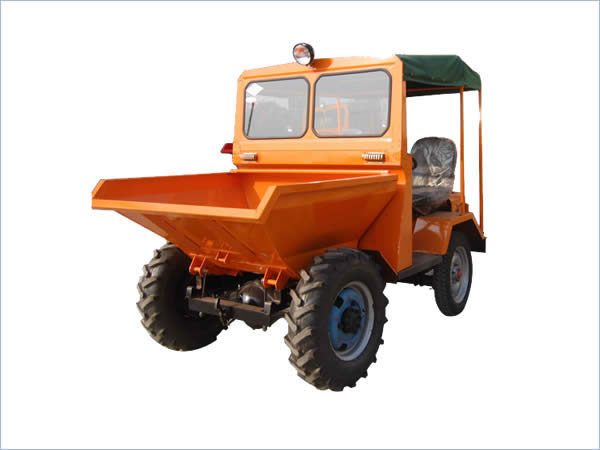

FCY15 Dumper Main Specifications
Engine Details	Model	ZS1100
	Engine type	In-line, water-cooled, Single cylinder ,Diesel Engine
	Rated Power	11.03kw/15HP
	Rated Speed	2200 r/min
	Min.Ful Consumption	192 g/kw.h
Bucket	Bucket Capacity	0.70 m3
	Rated Loading Weight	1500 kg
	Operating Weight	1000 kg
	Tipping	Hydraulic
Dimensions	Overall Length	2800 mm
	Overall Height	2200 mm
	Overall Width	1500 mm
	Wheel base	1280 mm
	Tread	1500 mm
	Minimum turn radius	3500 mm
Tire	Front tire:5.00/16	Rear Tire:7.50/16
Drive Type	4X2 Wheel Drive Hydraulic steering Front Alex: Driving Rear Alex: Turning
