100hp

Detailed Product Description

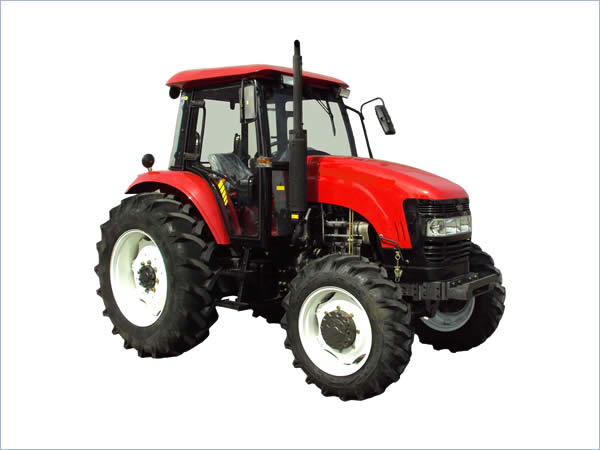

1004 farm tractor
1. 100hp 4wd farm tractor
2. YTO 4 cylinder turbo engine
3. Oil brake
4. Double lift cylinder

Model	1004
Drive type	4x4
Engine model	LR4M3Z-23 Turbocharge engine
Capacity of fuel tank(L)	150
Engine power at rated speed	73.5
PTO power at rated speed	62.5
Clutch	Dry,Dual-stage type
PTO Speed(rpm)	540/1000
Gear shift	8F+4R/16F+8R(optional)
Hydraulic output valve	2-Way (optional)
Category of 3-point link	Category II
Lifting capacity(at point of 610mm)KN	above 16
Dimension LxWxH mm	4593x2050x2810
Wheel base(mm)	2195
Track base(mm) front wheel	1610
Track base(mm) rear wheel	1620-2020 (usual 1620)
The smallest clearance(mm)	379
Front tyre	12.4-24
Rear tyre	16.9-34
