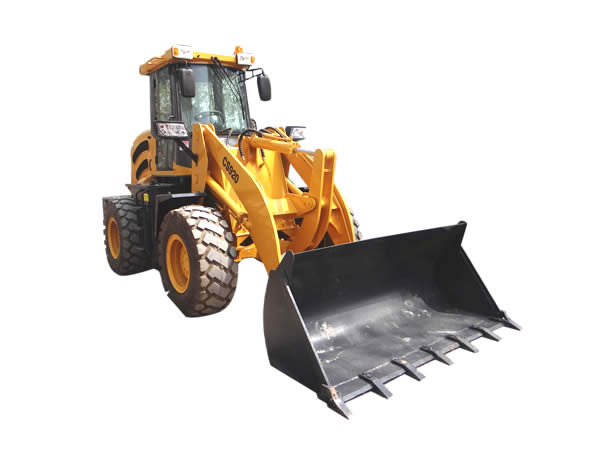

ZL20F

Engine Details

Model

Weichaihuadong4102,4105 or as customer’s Requirements

Engine type

In-line arrangement, water-cooled, four-cycle diesel Engine

Rated Power

44kw, 59.0HP

Rated Speed

2400 r/min

Min.ful consumption

235 g/kw.h

Bucket

Bucket Capacity

1.1 m3

Bucket type

Heavy-duty bolt on teeth

Max. Breakout Force

50 KN

Rated Loading weight

2000 kg

Total Weight

4500 kg

Overall Dimensions

Overall Length

5600 mm

Overall Height

2850 mm

Overall Width

1800 mm

Max. discharge height

3000 mm

Wheel base

2350 mm

Tread

1500 mm

Operating Specifications

Steering System

Articulated Frame with hydraulic power steering

Min Turning Radius

4600 mm

Driving System

Hydraulic converter

Brake System

Service Brake

Four Wheel Hydraulic spread-shoed brake

Parking Brake

Hand operated

Tyre

16.70-20
