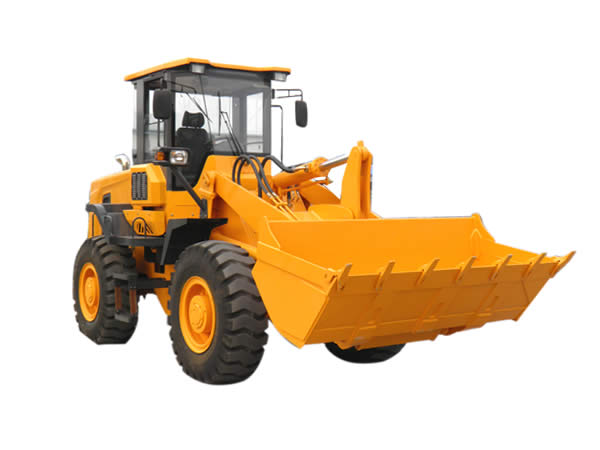

ZL30F

Engine Details

Model

Weichai 6105/DEUTZ 226B

Engine type

In-line arrangement, water-cooled, 6 cylinders, diesel Engine

Rated Power

92kw

Rated Speed

2600 r/min

Min.ful consumption

221 g/kw.h

Bucket

Bucket Capacity

1.7 m3

Bucket type

Heavy-duty bolt on teeth

Rated Loading weight

3000 kg

Total Weight

9800 kg

Overall Dimensions

Overall Length

6990 mm

Overall Height

3190 mm

Overall Width

2500 mm

Max. discharge height

3100 mm

Wheel base

2750 mm

Tread

1800 mm

Operating Specifications

Steering System

Articulated Frame with hydraulic power steering

Min Turning Radius

5700 mm

Driving System

Hydraulic converter

Brake System

Service Brake

Four Wheel Hydraulic spread-shoed brake

Parking Brake

Hand operated

Tyre

17.5-25
