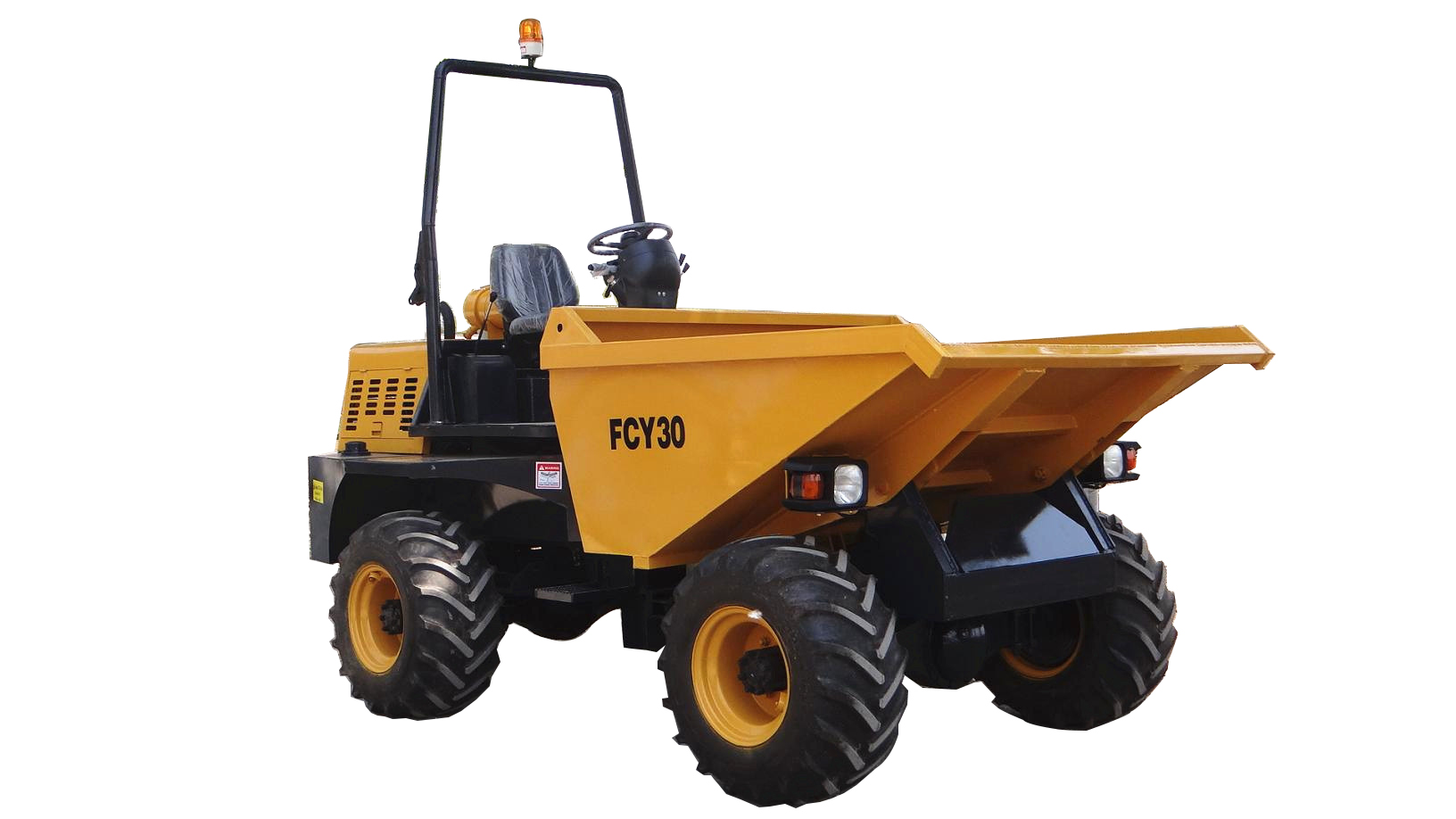

FCY-30

FCY-30 Dumper Main Specifications
Engine Details	Model	KM385
	Engine type	In-line, water-cooled, 3 cylinders ,Diesel Engine
	Rated Power	20kw
	Rated Speed	2200 r/min
	Min.Ful Consumption	198 g/kw.h
Bucket	Bucket Capacity	1.50 m3 /1400 L
	Rated Loading Weight	3000 kg
	Operating Weight	1850 kg
	Tipping	Hydraulic
Dimensions	Overall Length	3550 mm
	Overall Height	2350 mm
	Overall Width	1700 mm
	Wheel base	1360 mm
	Tread	1960 mm
	Minimum turn radius	4000 mm
Tire	Front tire:8.25/16	Rear Tire:8.25/16
Drive Type	4X4 Wheel Drive
Steering	Hydraulic
