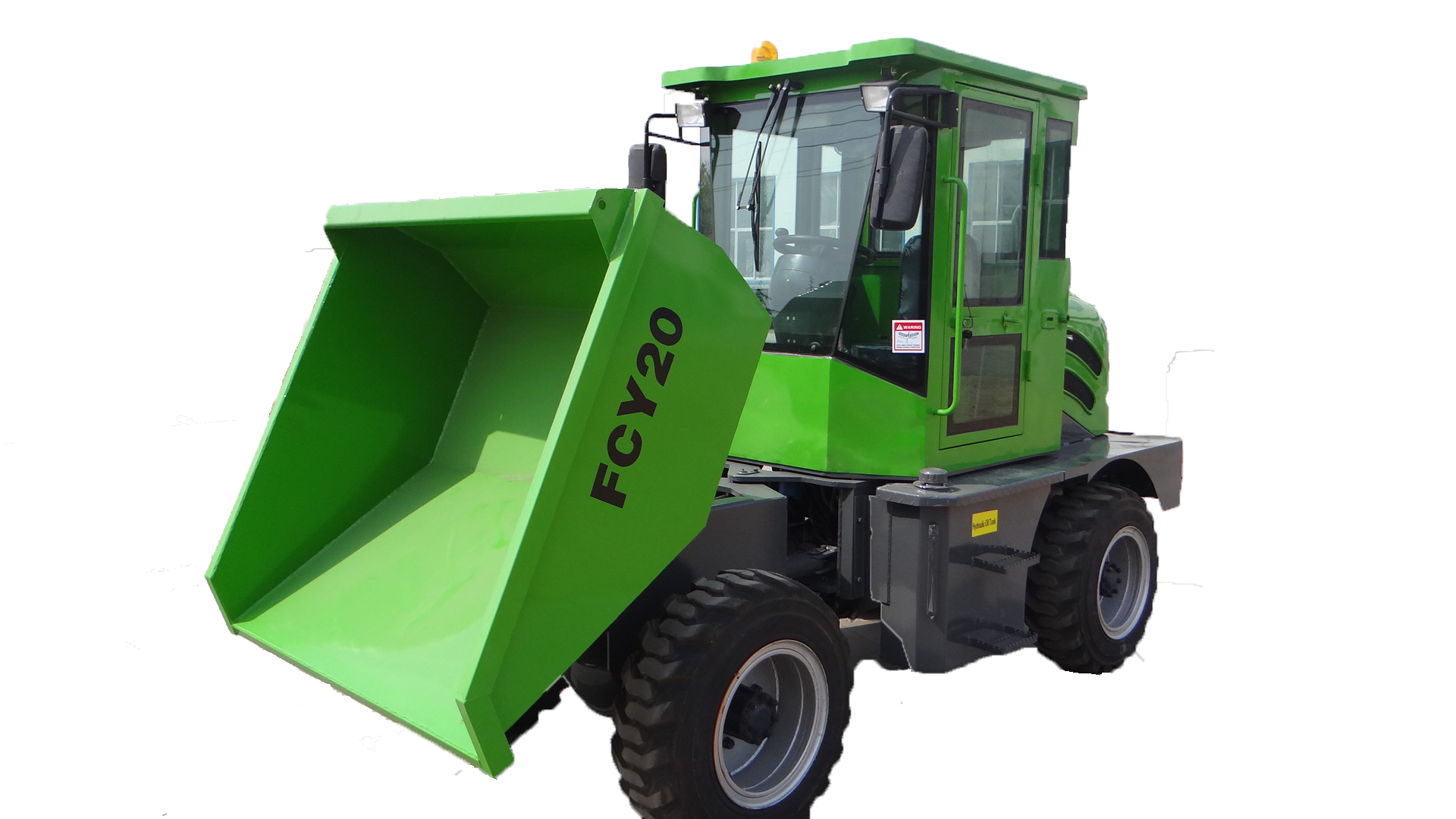

FCY-20

FCY-20 Dumper Main Specifications
Engine Details	Model	KM385
	Engine type	In-line, water-cooled, 3 cylinders ,Diesel Engine
	Rated Power	20kw
	Rated Speed	2200 r/min
Hydraulic	Tipping & Steering
Bucket	Bucket Capacity	1. 0 m3
	Rated Loading Weight	2000 kg
	Operating Weight	1550 kg
Dimensions	Overall Length	3450 mm
	Overall Height	2350 mm
	Overall Width	1700 mm
	Wheel base	1360 mm
	Tread	1960 mm
	Minimum turn radius	4000 mm
Tire	Front tire:7.50/16	Rear Tire:7.50/16
Drive Type	4X4 Wheel Drive
